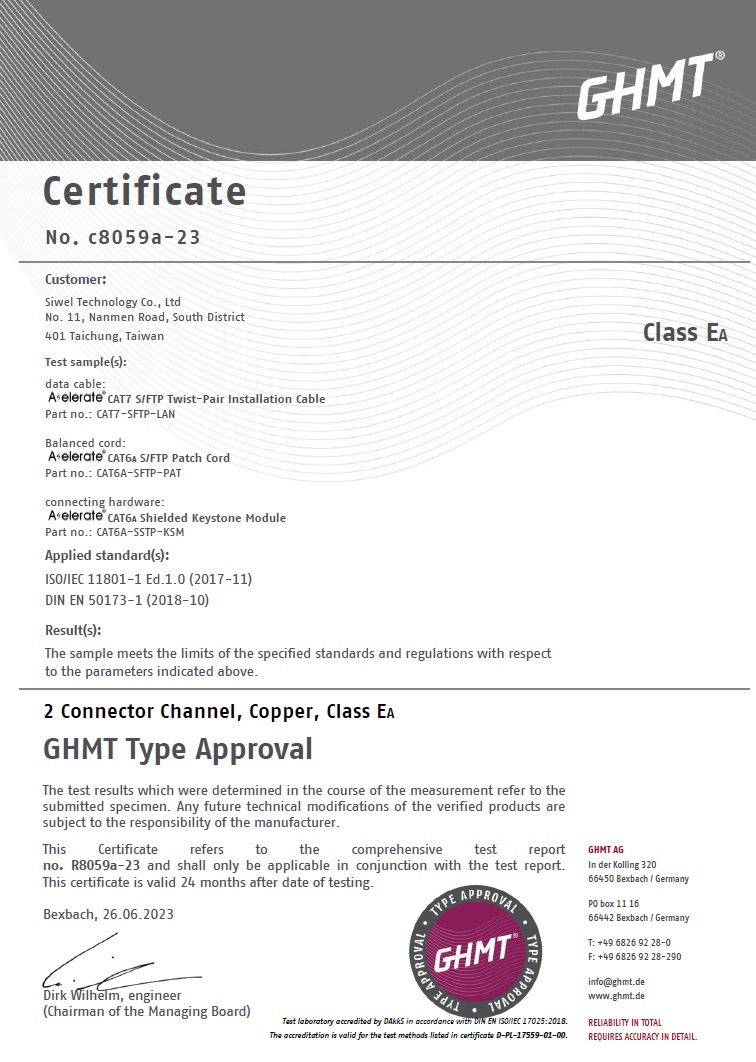

• GHMT Type Approval ISO11801 4-connector Channel
• 10GBit Ethernet

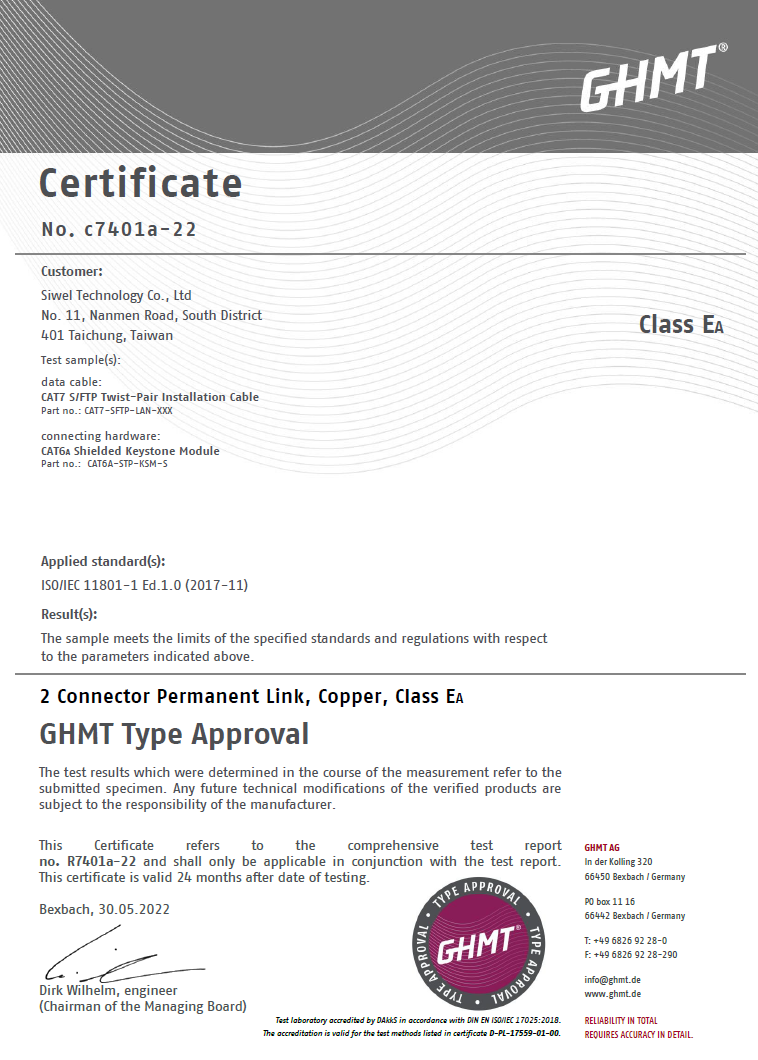

• Permanent link certified
• PoE Power over Ethernet support
• CPR class Eca/Dca
• Cable Length available: 500m/drum, 1000m/drum

Siwel CAT7 S/FTP installation cable is designed with 4x2x AWG23/1 cable construction. Its halogen free LSZH cable jacket conforms to the standard IEC 60332-1, LSZH-1 and CPR Euro class Eca. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Technical Details

• Physical properties:
• Conductor: Bare Copper, solid AWG 23/1
• Insulation: SFS-PE (Foam-Skin Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shielding: Aluminum foil, providing 100 % coverage
• Overall shielding: Copper braid
• Outer sheath: Eca to Dca acc. to EN 50575; LSZH
• Outer sheath diameter (nominal): 0.50 mm (Eca); 0.52 mm (Dca)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +75 °C
• Operating temperature range: -20 °C up to +50 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca)
• Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca)
• Electrical properties:
• Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
• Capacitance: 45 pF/m nominal @ 1 KHz
• Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
• DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: Grade 1 (CA-Type 1b)
• Signal propagation delay: 450 nS/100 m max.
• Propagation delay: 10 nS/100 m max.
• NVP: 78%
