CAT8-STP-KSM-S
    Publish time 2023-01-13 16:30

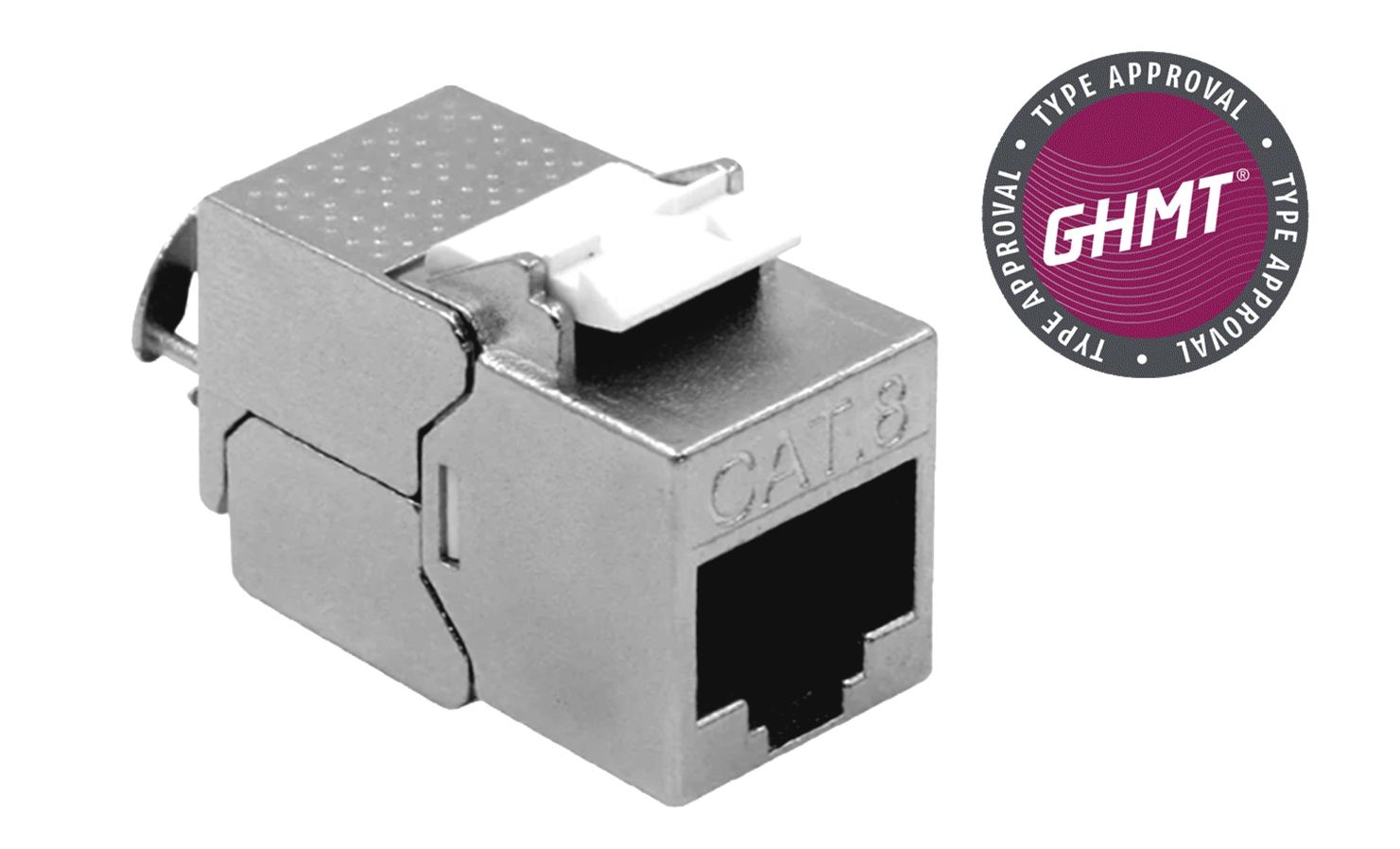

CAT8 Slim Shielded Keystone Jack, Tool-less. 40G/2000MHz
  • Slim 14.5mm width design
  • GHMT certified ISO11801 Class I Type Approval
  • Category 8 40GBase-T, 2000 MHz
  • ISO/IEC 11801 3rd Edition, EN 50173-1
  • Suitable for PoE/PoE+ (IEEE 802.3af, 3at)
  • Suitable for modular patch panel and modular wall outlet installation.
  • RJ45-Jack, 8P8C
  • Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B
  • Cable grip and cable fixation using intelligent cable manager
  • Tool-free mounting connection
  • 360° shield contact
  • Case material: Zinc die-cast – nickel-plated
  • Contact material: Phosphor bronze
  • Contact coating: Nickel, gold-plated
  • Insertion force: Max. 30N (as per IEC 60603-7-51)
  • Holding force: 7.7 kg between jack and plug
  • Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
  • Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
  • Colour: Silver
  • Model: Bus (jack)
  • Connection type: LSA
  • Screened: yes
  • Suitable for round cable: yes
  • Suitable for flat cable: no
  • Suitable for litz wire conductor: yes
  • Suitable for solid core: yes
  • Type of connector: RJ45 8(8)
  • AWG-range: 26 to 22
  • Special tool necessary: no
