• GHMT Type Approval ISO11801 4-connector Channel Class E
• 1GBit Ethernet
• 250 MHz transmission frequency
• PoE Power over Ethernet support
• CPR class Eca/Dca
• Cable length available: 100m/box, 305m/box, 500m/drum

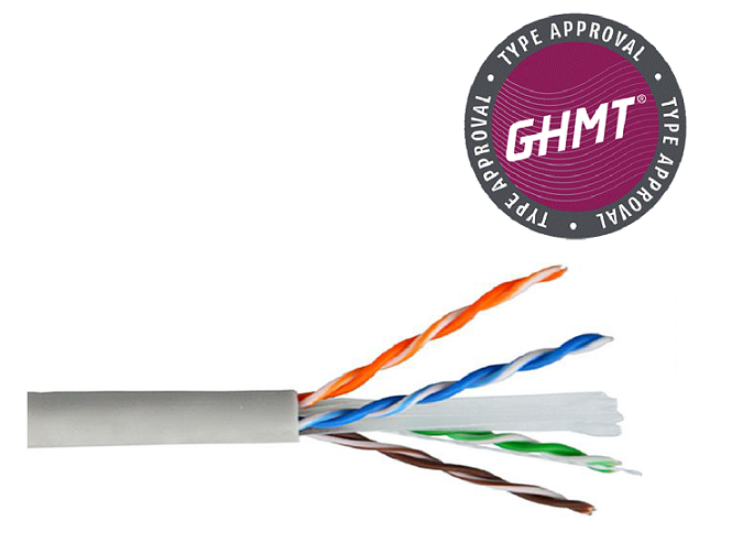

Siwel CAT6 U/UTP installation cable is with 4x2x AWG23/1 cable construction and reaches a transmission frequency up to 250 MHz. Its halogen free LSZH cable jacket is conform to the standard IEC 60332-1, LSZH-1 and CPR Euro class Eca/Dca. Compliant with the following standards ISO/IEC 11801, DIN EN 50173.

Technical Details

• Physical properties:
• Conductor: Bare annealed copper, solid AWG 23/1
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: None
• Outer sheath: Eca/Dca
• Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca)
• Mechanical properties:
• Tensile loading: 150N max.
• Shipping- and storage temperature range: -20 °C up to +60 °C
• Operating temperature range: -20 °C up to +75 °C
• Installation temperature range: 0 °C up to +50 °C
• Overall diameter Simplex (nominal): 6,1 mm (Eca); 6,3 mm (Dca)
• Weight (kg/km): 41 kg (Eca); 42 kg (Dca)
• Electrical properties:
• Impedance: 100±5Ohm @ 1 - 250MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Signal propagation delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• NVP: 69%
